Strategic points
tr_strategic_points
What it does
Observation points (high ground ranked by what it sees), open flat ground and terrain-masked areas.
Like No single tool (Visibility + Slope workflow) in ArcGIS Pro and No equivalent in QGIS. Run by the product's terrain engine on 30 m cells from Copernicus DEM GLO-30 (full resolution): 740 x 930 = 688,200 cells; no model was called.

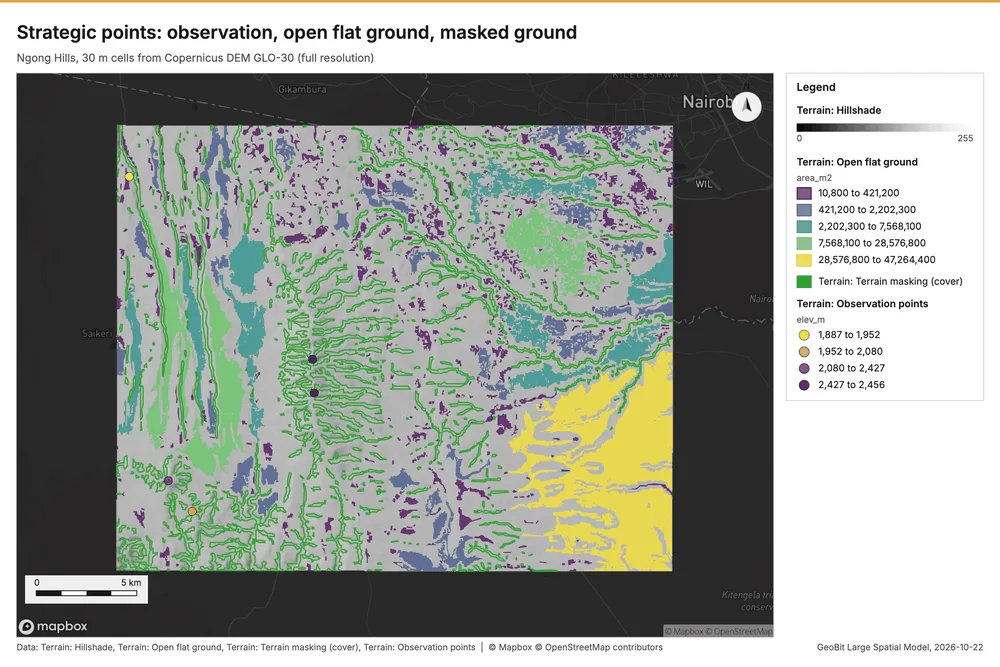

Strategic points: observation, open flat ground, masked ground
5 observation point(s), 714 open flat area(s), 646 masked area(s).
Parameters
| Parameter | Value |
|---|---|
| cell_size_m | 30 |
| n | 5 |
| view_radius_m | 1e+04 |
Numbers
| Measure | Value |
|---|---|
| dem.rows | 740 |
| dem.cols | 930 |
| dem.cell_m | 30 |
| dem.crs | EPSG:32737 |
| dem.missing_frac | 0 |
| dem.elev_min_m | 1,562 |
| dem.elev_max_m | 2,456 |
| dem.elev_mean_m | 1,824 |
| dem.relief_m | 894.3 |
| dem_source.kind | copernicus |
| dem_source.native_res_m | 30.91 |
| dem_source.crs | EPSG:4326 |
| dem_source.dataset | Copernicus DEM GLO-30 |
Notes
- DEM: Copernicus DEM GLO-30 (open data; cached). Copernicus DEM GLO-30: produced using Copernicus WorldDEM-30 (c) DLR e.V. 2010-2014 and (c) Airbus Defence and Space GmbH 2014-2018 provided under COPERNICUS by the European Union and ESA
- the grid (30 m) is finer than the DEM (30.9 m): values between DEM samples are interpolated
- terrain only: vegetation, buildings and roads are not modeled
