Least-cost path
tr_least_cost_path
What it does
The fastest route for a mobility class through start, optional vias and end, with up to three alternates, travel time and an optional least-cost corridor.
Like Cost Distance + Optimal Path As Line / Least Cost Path (Spatial Analyst) in ArcGIS Pro and Least Cost Path plugin / GRASS r.cost + r.drain in QGIS. Run by the product's terrain engine on 30 m cells from Copernicus DEM GLO-30 (full resolution): 740 x 930 = 688,200 cells; no model was called.
Charts

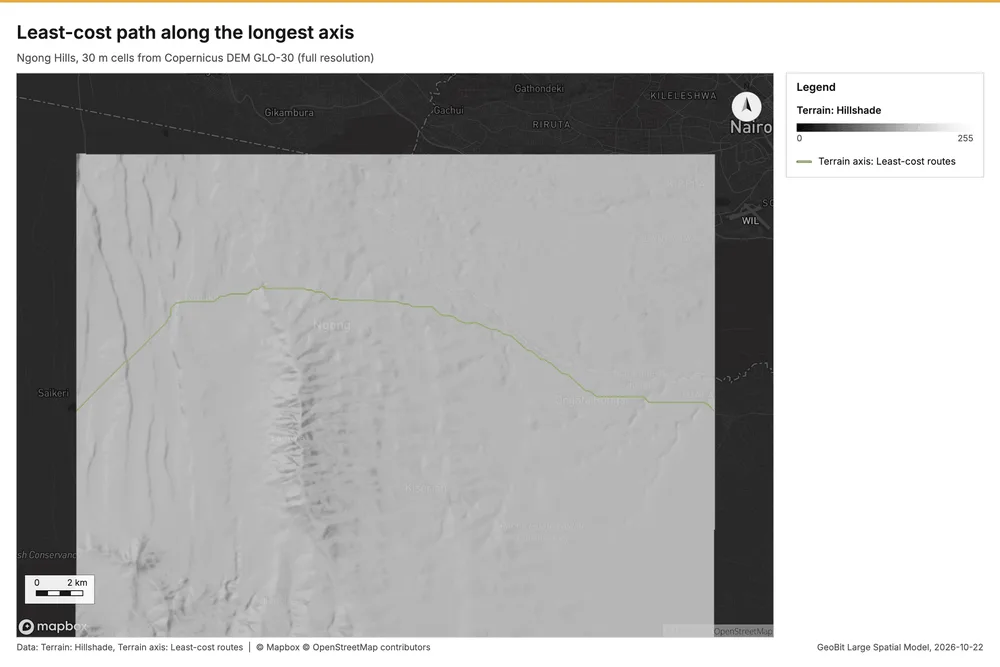

Least-cost path along the longest axis
Best dismounted route: 32.55 km in about 413 min (ascent 664 m, 1% restricted); 0 alternate(s).
Parameters
| Parameter | Value |
|---|---|
| cell_size_m | 30 |
| points | auto:axis (the entry points of the area's longest axis) |
| mobility_class | dismounted |
| time_raster | no |
Numbers
| Measure | Value |
|---|---|
| best.length_m | 3.255e+04 |
| best.time_s | 2.479e+04 |
| best.time_min | 413.1 |
| best.ascent_m | 663.5 |
| best.descent_m | 555.3 |
| best.max_slope_pct | 43.7 |
| best.unrestricted_pct | 99.4 |
| best.restricted_pct | 0.6 |
| best.severe_pct | 0 |
| best.cells | 943 |
| rules.model | tobler |
| rules.flat_kmh | 5 |
| rules.restricted_pct | 30 |
| rules.severe_pct | 60 |
| rules.restricted_speed_frac | 0.5 |
| rules.severe_speed_frac | 0.2 |
| rules.road_kmh | 5 |
| rules.class | dismounted |
| length_m | 3.255e+04 |
| dem.rows | 740 |
| dem.cols | 930 |
| dem.cell_m | 30 |
| dem.crs | EPSG:32737 |
| dem.missing_frac | 0 |
| dem.elev_min_m | 1,562 |
| dem.elev_max_m | 2,456 |
| dem.elev_mean_m | 1,824 |
| dem.relief_m | 894.3 |
| dem_source.kind | copernicus |
| dem_source.native_res_m | 30.91 |
Notes
- DEM: Copernicus DEM GLO-30 (open data; cached). Copernicus DEM GLO-30: produced using Copernicus WorldDEM-30 (c) DLR e.V. 2010-2014 and (c) Airbus Defence and Space GmbH 2014-2018 provided under COPERNICUS by the European Union and ESA
- points: the entry points of the area's longest axis, 36.55010, -1.40000 and 36.79989, -1.40025
- the grid (30 m) is finer than the DEM (30.9 m): values between DEM samples are interpolated
- GeoBit method defaults (uncalibrated); override any value per call

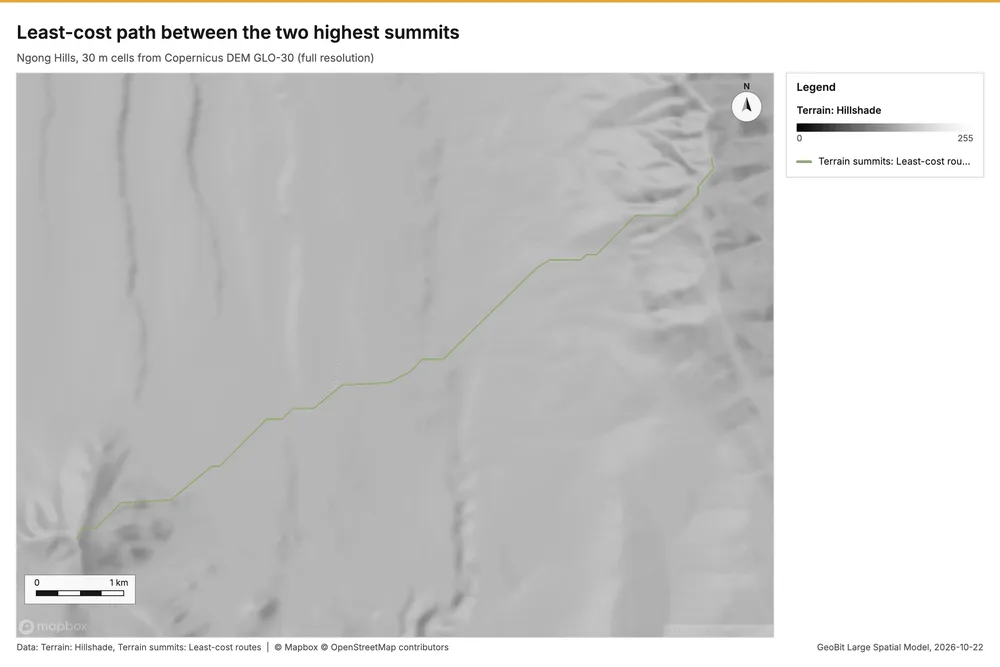

Least-cost path between the two highest summits
Best dismounted route: 9.35 km in about 170 min (ascent 391 m, 15% restricted); 0 alternate(s).
Parameters
| Parameter | Value |
|---|---|
| cell_size_m | 30 |
| points | auto:heights (the two highest summits) |
| mobility_class | dismounted |
| time_raster | no |
Numbers
| Measure | Value |
|---|---|
| best.length_m | 9,352 |
| best.time_s | 1.02e+04 |
| best.time_min | 170 |
| best.ascent_m | 390.6 |
| best.descent_m | 766 |
| best.max_slope_pct | 59.24 |
| best.unrestricted_pct | 84.8 |
| best.restricted_pct | 15.2 |
| best.severe_pct | 0 |
| best.cells | 256 |
| rules.model | tobler |
| rules.flat_kmh | 5 |
| rules.restricted_pct | 30 |
| rules.severe_pct | 60 |
| rules.restricted_speed_frac | 0.5 |
| rules.severe_speed_frac | 0.2 |
| rules.road_kmh | 5 |
| rules.class | dismounted |
| length_m | 9,352 |
| dem.rows | 740 |
| dem.cols | 930 |
| dem.cell_m | 30 |
| dem.crs | EPSG:32737 |
| dem.missing_frac | 0 |
| dem.elev_min_m | 1,562 |
| dem.elev_max_m | 2,456 |
| dem.elev_mean_m | 1,824 |
| dem.relief_m | 894.3 |
| dem_source.kind | copernicus |
| dem_source.native_res_m | 30.91 |
Notes
- DEM: Copernicus DEM GLO-30 (open data; cached). Copernicus DEM GLO-30: produced using Copernicus WorldDEM-30 (c) DLR e.V. 2010-2014 and (c) Airbus Defence and Space GmbH 2014-2018 provided under COPERNICUS by the European Union and ESA
- points: between DH-1 (2,456 m) and DH-2 (2,080 m)
- the grid (30 m) is finer than the DEM (30.9 m): values between DEM samples are interpolated
- GeoBit method defaults (uncalibrated); override any value per call
