Slope
tr_slope
What it does
Horn slope in degrees or percent, with the share of ground in six grade classes.
Like Slope (Spatial Analyst) in ArcGIS Pro and Slope (GDAL DEM) in QGIS. Run by the product's terrain engine on 30 m cells from Copernicus DEM GLO-30 (full resolution): 740 x 930 = 688,200 cells; no model was called.
It also ran in sample projects: see Slope in the samples.
Charts

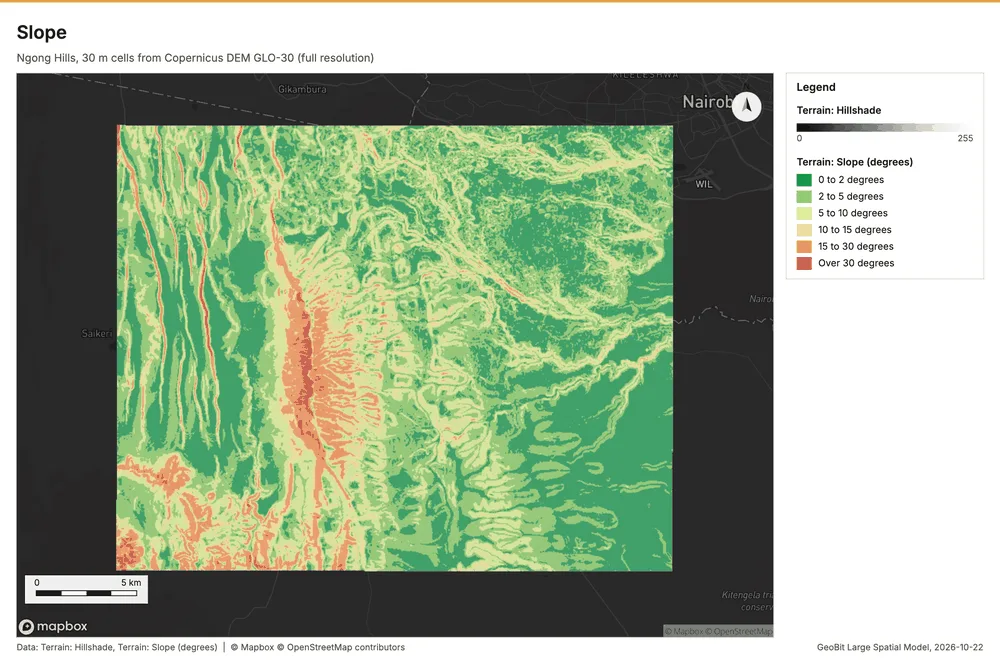

Slope
Slope over 619.38 km2: mean 5.17 degrees, max 48.96 degrees; 17% of the ground is steeper than 15%.
Parameters
| Parameter | Value |
|---|---|
| cell_size_m | 30 |
| units | degrees |
Numbers
| Measure | Value |
|---|---|
| min | 0 |
| max | 48.96 |
| mean | 5.17 |
| median | 3.27 |
| units | degrees |
| steeper_than_15pct | 17.02 |
| dem.rows | 740 |
| dem.cols | 930 |
| dem.cell_m | 30 |
| dem.crs | EPSG:32737 |
| dem.missing_frac | 0 |
| dem.elev_min_m | 1,562 |
| dem.elev_max_m | 2,456 |
| dem.elev_mean_m | 1,824 |
| dem.relief_m | 894.3 |
| dem_source.kind | copernicus |
| dem_source.native_res_m | 30.91 |
| dem_source.crs | EPSG:4326 |
| dem_source.dataset | Copernicus DEM GLO-30 |
Notes
- DEM: Copernicus DEM GLO-30 (open data; cached). Copernicus DEM GLO-30: produced using Copernicus WorldDEM-30 (c) DLR e.V. 2010-2014 and (c) Airbus Defence and Space GmbH 2014-2018 provided under COPERNICUS by the European Union and ESA
- the grid (30 m) is finer than the DEM (30.9 m): values between DEM samples are interpolated
Layers
Files
| Layer | Made by | Kind | Features | File |
|---|---|---|---|---|

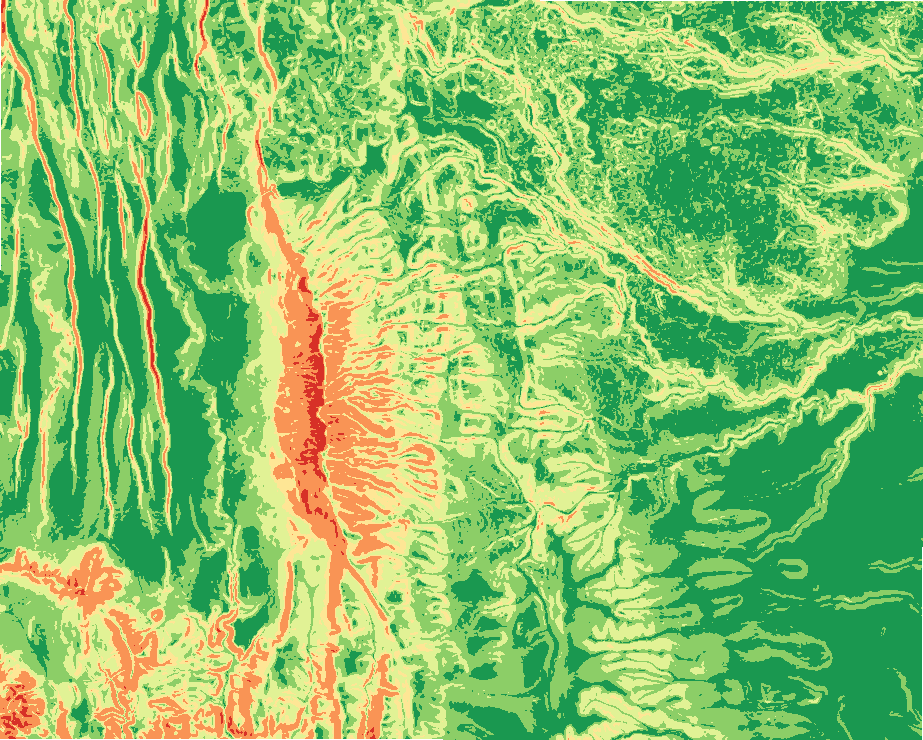

| Terrain: Slope (degrees) | tr_slope | raster image | PNG 141 KB |
