Terrain suite
tr_terrain_suite
What it does
The standard set in one call: slope, aspect, hillshade, curvature, ruggedness, TPI, landforms, flow accumulation and streams, ravines and ridges, contours.
Like Surface Parameters + Hydrology toolset in ArcGIS Pro and SAGA Basic Terrain Analysis in QGIS. Run by the product's terrain engine on 30 m cells from Copernicus DEM GLO-30 (full resolution): 740 x 930 = 688,200 cells; no model was called.

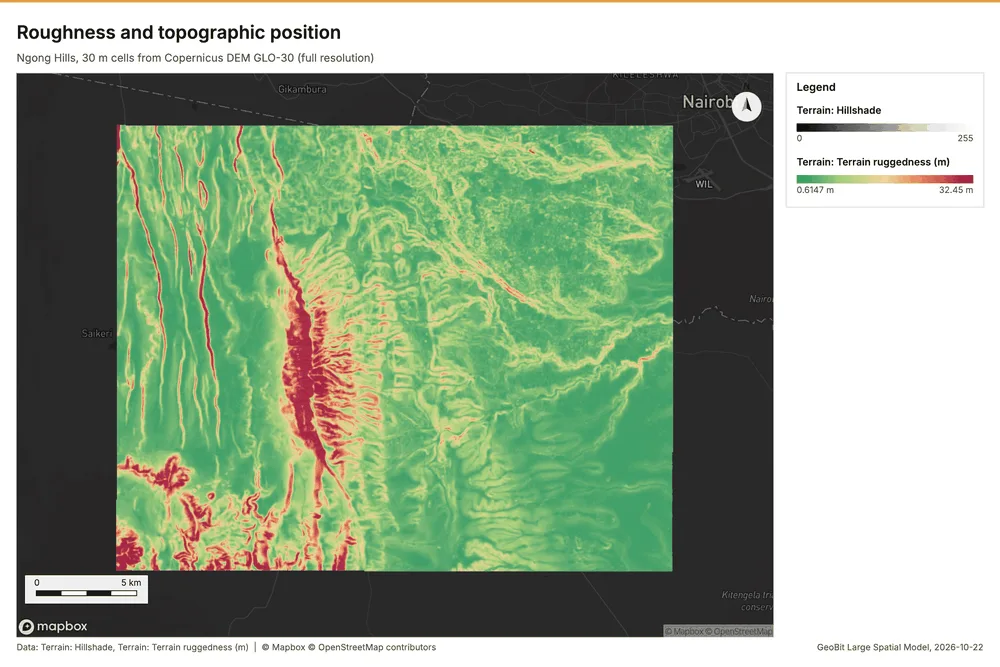

Roughness and topographic position
Terrain suite over 619.38 km2 at 30 m: elevation 1561.61 to 2455.93 m; 2 raster(s) and 0 vector layer(s).
Parameters
| Parameter | Value |
|---|---|
| cell_size_m | 30 |

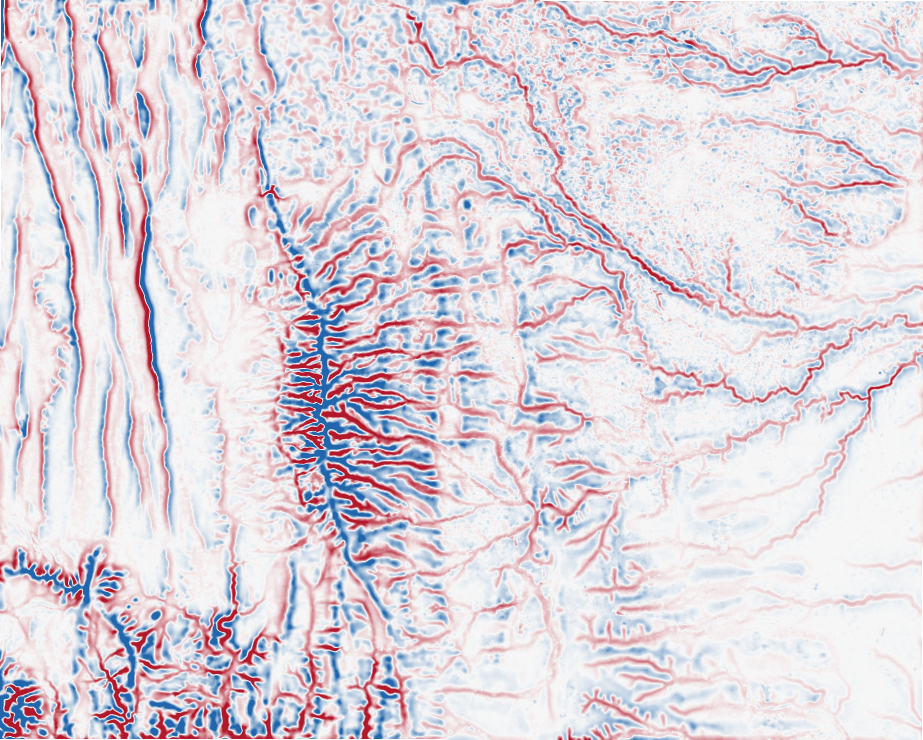

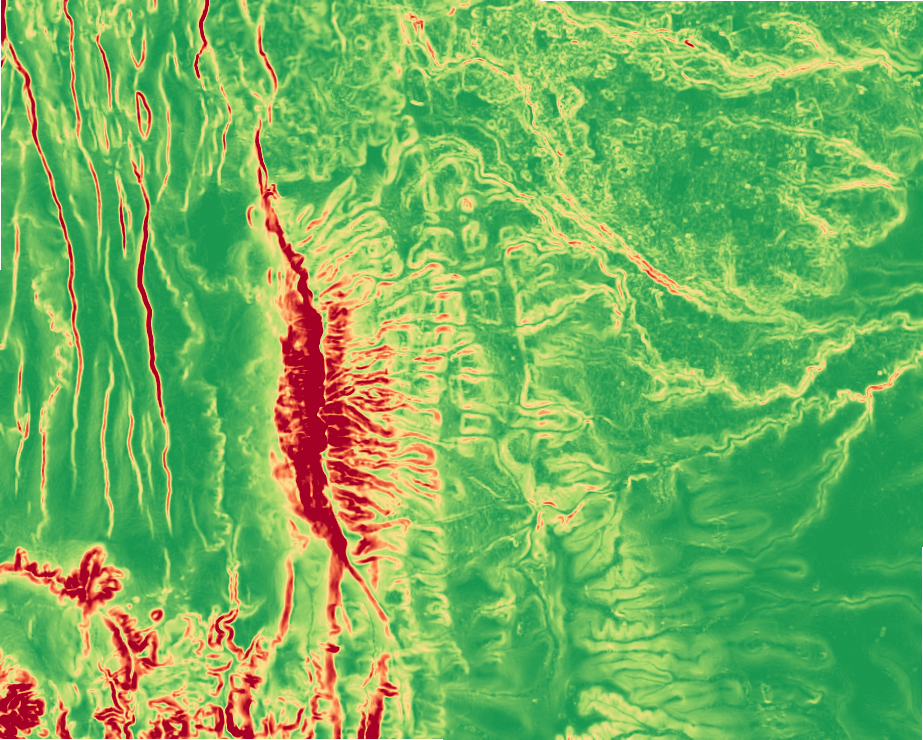

| include | ["tri", "tpi"] |
Numbers
| Measure | Value |
|---|---|
| dem.rows | 740 |
| dem.cols | 930 |
| dem.cell_m | 30 |
| dem.crs | EPSG:32737 |
| dem.missing_frac | 0 |
| dem.elev_min_m | 1,562 |
| dem.elev_max_m | 2,456 |
| dem.elev_mean_m | 1,824 |
| dem.relief_m | 894.3 |
| dem_source.kind | copernicus |
| dem_source.native_res_m | 30.91 |
| dem_source.crs | EPSG:4326 |
| dem_source.dataset | Copernicus DEM GLO-30 |
Notes
- DEM: Copernicus DEM GLO-30 (open data; cached). Copernicus DEM GLO-30: produced using Copernicus WorldDEM-30 (c) DLR e.V. 2010-2014 and (c) Airbus Defence and Space GmbH 2014-2018 provided under COPERNICUS by the European Union and ESA
- the grid (30 m) is finer than the DEM (30.9 m): values between DEM samples are interpolated
