Erosion risk
tr_erosion_risk
What it does

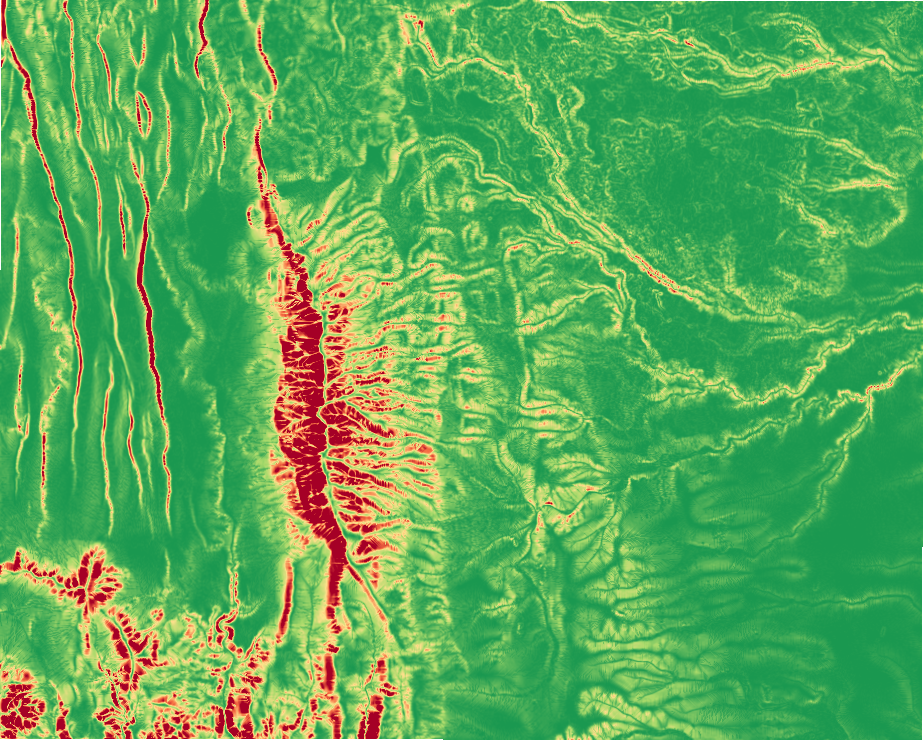

Soil loss with the RUSLE form (A = R K LS C P) and its LS factor from the flow field.
Like No direct tool (RUSLE workflow in Raster Calculator) in ArcGIS Pro and SAGA LS Factor + Raster calculator in QGIS. Run by the product's terrain engine on 30 m cells from Copernicus DEM GLO-30 (full resolution): 740 x 930 = 688,200 cells; no model was called.

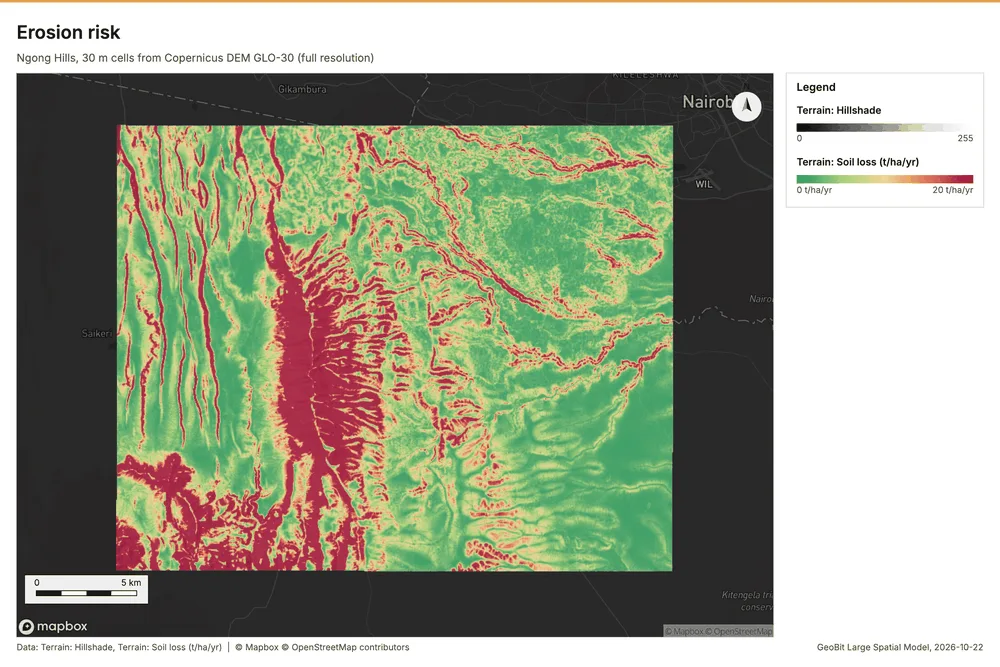

Erosion risk

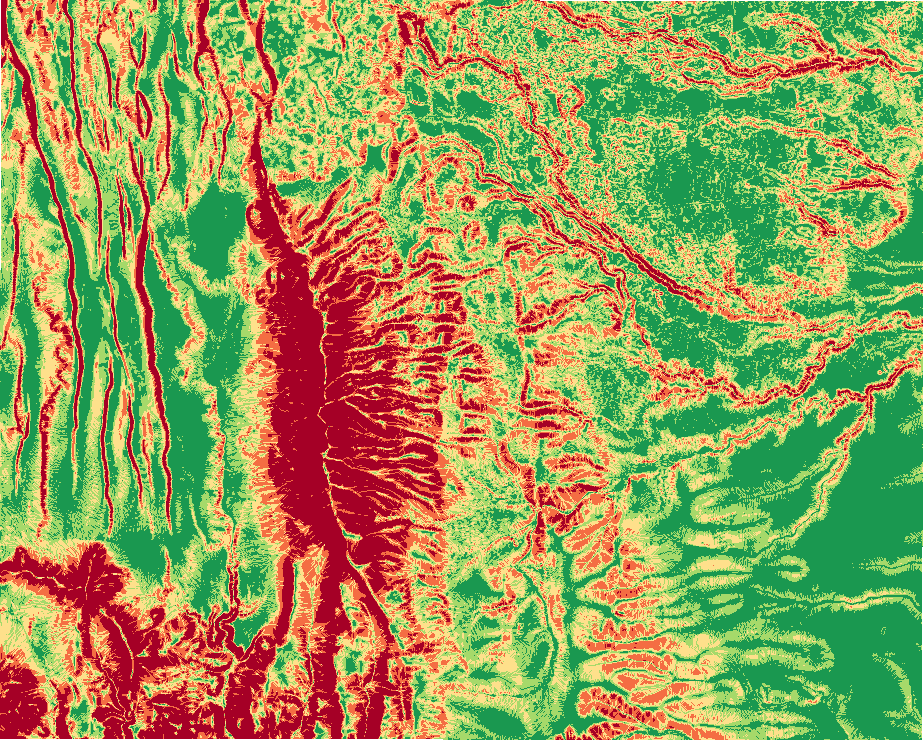

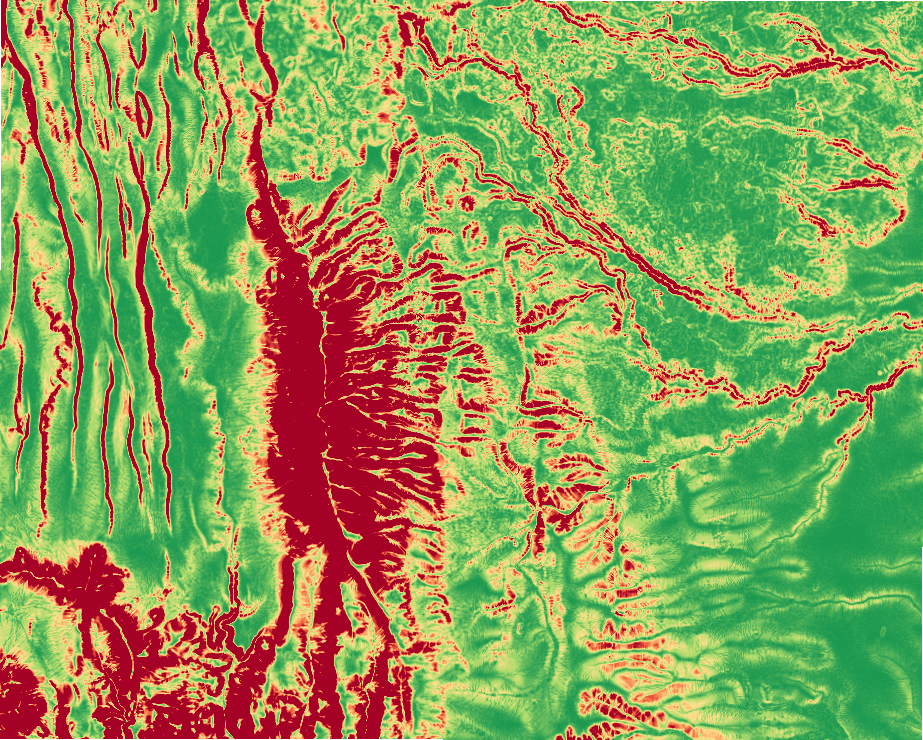

Erosion (RUSLE form): mean soil loss 9.93 t/ha/yr; 27.9% of the ground is high or very high.
Parameters
| Parameter | Value |
|---|---|
| cell_size_m | 30 |
Numbers
| Measure | Value |
|---|---|
| params.r_factor | 1,000 |
| params.k_factor | 0.03 |
| params.c_factor | 0.1 |
| params.p_factor | 1 |
| params.max_slope_length_m | 300 |
| soil_loss.min | 0 |
| soil_loss.max | 177.9 |
| soil_loss.mean | 9.928 |
| soil_loss.median | 4.471 |
| ls.min | 0 |
| ls.max | 59.3 |
| ls.mean | 3.309 |
| ls.median | 1.49 |
| dem.rows | 740 |
| dem.cols | 930 |
| dem.cell_m | 30 |
| dem.crs | EPSG:32737 |
| dem.missing_frac | 0 |
| dem.elev_min_m | 1,562 |
| dem.elev_max_m | 2,456 |
| dem.elev_mean_m | 1,824 |
| dem.relief_m | 894.3 |
| dem_source.kind | copernicus |
| dem_source.native_res_m | 30.91 |
| dem_source.crs | EPSG:4326 |
| dem_source.dataset | Copernicus DEM GLO-30 |
Notes
- DEM: Copernicus DEM GLO-30 (open data; cached). Copernicus DEM GLO-30: produced using Copernicus WorldDEM-30 (c) DLR e.V. 2010-2014 and (c) Airbus Defence and Space GmbH 2014-2018 provided under COPERNICUS by the European Union and ESA
- the grid (30 m) is finer than the DEM (30.9 m): values between DEM samples are interpolated
- R, K, C and P are uniform illustrative defaults: set them for the place
