Watershed
tr_watershed
What it does
Watersheds draining through pour points (snapped to the strongest flow nearby), or the largest outlet basins when no point is given.
Like Watershed + Snap Pour Point (Spatial Analyst) in ArcGIS Pro and GRASS r.water.outlet / r.watershed in QGIS. Run by the product's terrain engine on 30 m cells from Copernicus DEM GLO-30 (full resolution): 740 x 930 = 688,200 cells; no model was called.

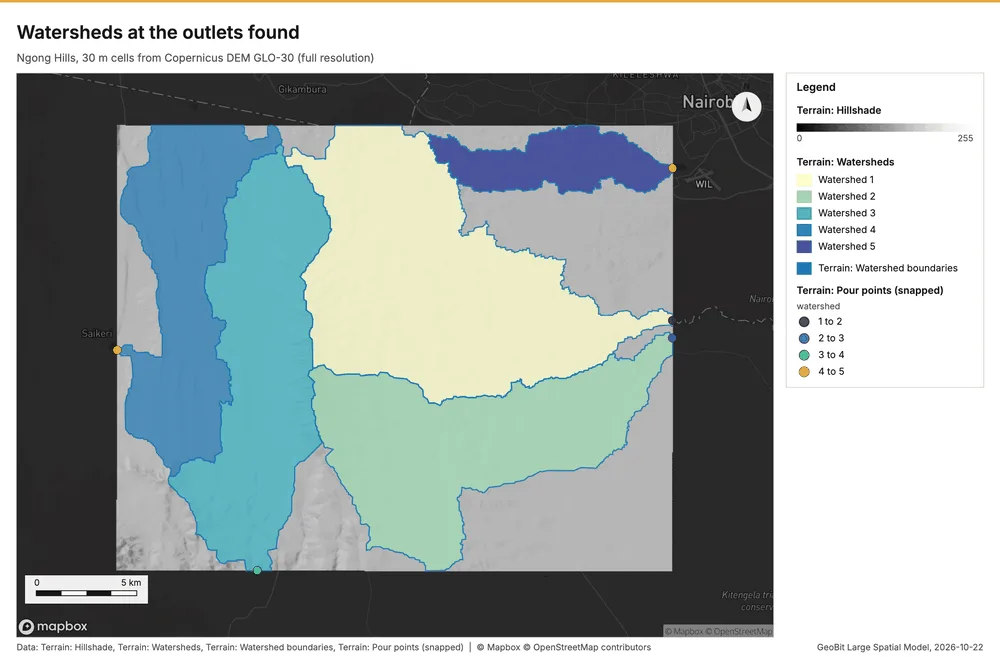

Watersheds at the outlets found
Watersheds of the 5 largest outlet basin(s): 428.951 km2 in total; the largest drains 138.166 km2.
Parameters
| Parameter | Value |
|---|---|
| cell_size_m | 30 |
| max_basins | 5 |
Numbers
| Measure | Value |
|---|---|
| backend | pure |
| snap_cells | 3 |
| dem.rows | 740 |
| dem.cols | 930 |
| dem.cell_m | 30 |
| dem.crs | EPSG:32737 |
| dem.missing_frac | 0 |
| dem.elev_min_m | 1,562 |
| dem.elev_max_m | 2,456 |
| dem.elev_mean_m | 1,824 |
| dem.relief_m | 894.3 |
| dem_source.kind | copernicus |
| dem_source.native_res_m | 30.91 |
| dem_source.crs | EPSG:4326 |
| dem_source.dataset | Copernicus DEM GLO-30 |
Notes
- DEM: Copernicus DEM GLO-30 (open data; cached). Copernicus DEM GLO-30: produced using Copernicus WorldDEM-30 (c) DLR e.V. 2010-2014 and (c) Airbus Defence and Space GmbH 2014-2018 provided under COPERNICUS by the European Union and ESA
- the grid (30 m) is finer than the DEM (30.9 m): values between DEM samples are interpolated
